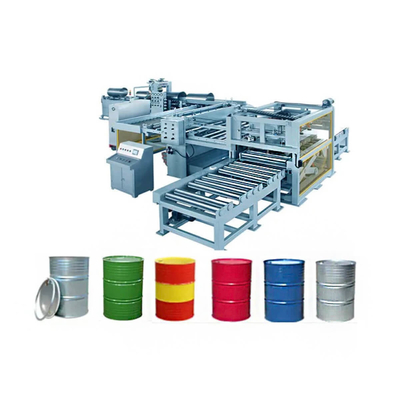

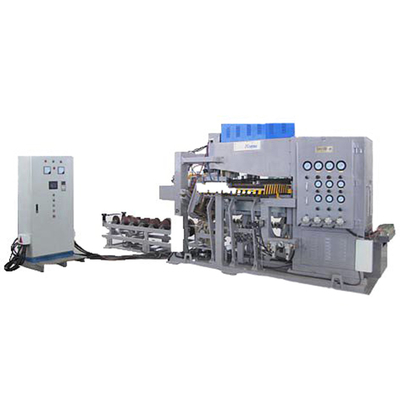

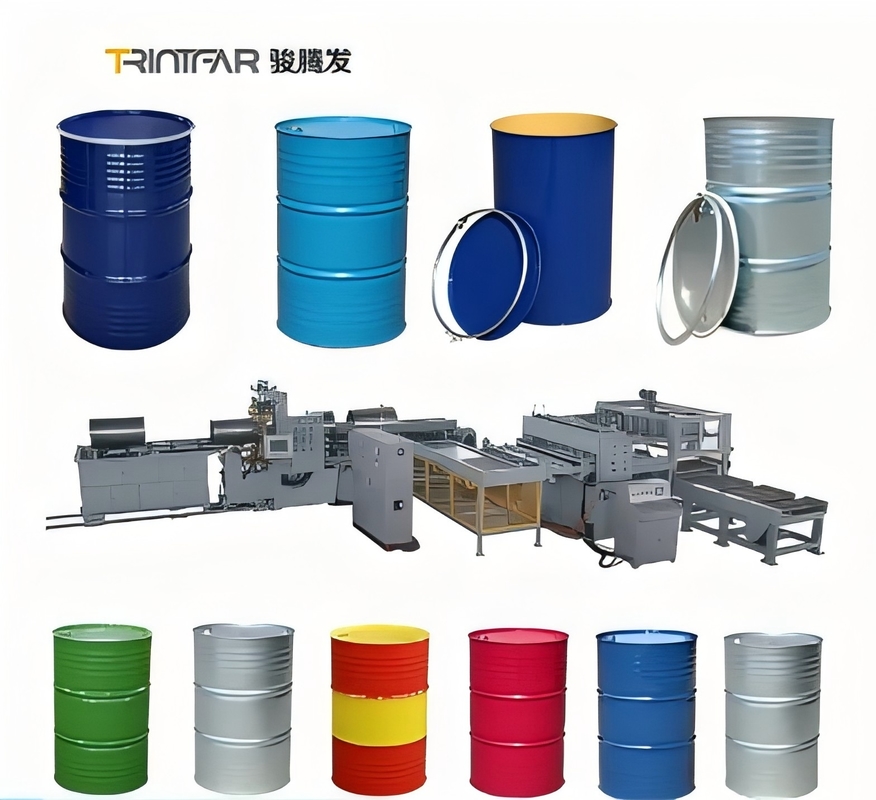

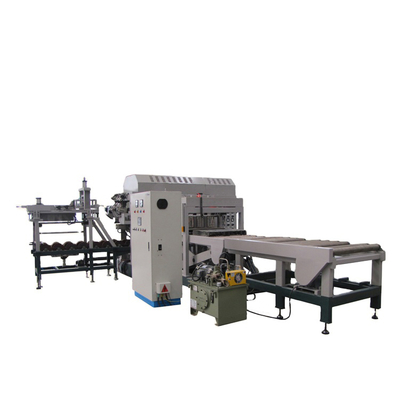

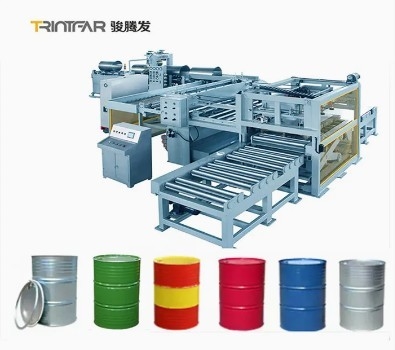

TRINTFAR 55 Gallon Automatic Steel Barrel Welder Steel Drum Seam Welding Equipment

Name: TRINTFAR 55 Gallon Automatic Steel Barrel Welder Steel Drum Seam Welding Equipment
Brand: Shanghai Trintfar Intelligent Equipment Co., Ltd.
SKU: FMT-80
Price: 152,500.00 USD
Availability: InStock

Todos los productos

Máquinas de la soldadura por puntos
(49)

Soldador de almacenamiento de energía
(15)

Máquina de soldadura personalizada
(42)

Línea de producción de aletas de radiadores de transformadores
(14)

Máquina de la soldadura continua
(44)

máquina de soldadura de pernos
(13)

Cadena de producción de soldadura del tambor de acero
(25)

Máquina de la soldadura por resistencia a salientes
(18)

Máquina de la soldadura a tope
(40)

Soldadora de laser de la fibra
(23)

Soldadora de la difusión
(6)

Máquina de soldadura de malla de alambre
(9)

Brazo robótico
(14)

La otra soldadora
(27)

Los Mejores Productos

Línea de producción de soldadura de tambores de acero

Certificación

China Shanghai Trintfar Intelligent Equipment Co., Ltd. certificaciones

Comentarios de cliente

También puedes contactar con mi dirección de correo electrónico o WhatsApp. Espero su respuesta. En el caso de las empresas de la Unión Europea, la Comisión ha adoptado una decisión sobre la aplicación de la presente Directiva. WhatsApp: +86 15216883036 Shanghai Trintfar equipo inteligente Co. Ltd

—— Queridos amigos

Estoy en línea para chatear ahora

TRINTFAR 55 Gallon Automatic Steel Barrel Welder Steel Drum Seam Welding Equipment

Datos del producto:

Lugar de origen:	PORCELANA
Nombre de la marca:	TRINTFAR
Certificación:	CE
Número de modelo:	FMT-80

Pago y Envío Términos:

Cantidad de orden mínima:	1
Precio:	USD 5000-300000 set
Detalles de empaquetado:	Caja de madera
Tiempo de entrega:	En el plazo de 90 días del pago final
Condiciones de pago:	L/C, D/A, D/P, T/T
Capacidad de la fuente:	50 por año

Contacto

TRINTFAR 55 Gallon Automatic Steel Barrel Welder Steel Drum Seam Welding Equipment

descripción

Velocidad:	2~10 piezas/min.	Grado automático::	Automático
Uso::	encuentre la línea de soldadura	Material de empaquetado::	Plástico, madera
Nombre:	Soldador de barril de acero automático de alta calidad Máquina de soldadura de costura de tambor de	Lugar de origen::	Shanghai, China
Marca de marca::	TRINTFAR	Talla común::	55 galones (EE. UU.) y 44 galones (Reino Unido)

High Quality Automatic Steel Barrel Welder Steel Drum Seam Welding Machine

Features:
- Fully Automatic welder, featured in automatic coil feeding, rolling, seam welding, and transferring.
- Three-phase Variable-frequency control, up to 50% energy saving compared to two-phase control.
- Digital constant current weld parameter control-easy & simple to use
- Mercury-free weld heads
- All copper secondary for high efficiency
- Forged copper shafts for long life
- Easy to change forged copper electrodes
- High-performance 250kva fully encapsulated transformer
- Automatic electrode trimming
- Fully-internal cooling system, for a clean working environment

Technical Solution.

7 layers of circle rolling technology” (core tech of our company) has been adopted in Middle Equipment.

High-pressure painting without air, fuel heating has been adopted in Post Production Equipment.

Automatic production line, 11 workers are required only.

Complex Pressing technics have been adopted in Front Equipment, which saves 3～4% steel materials for each 55 Gallon steel  drum.

A. Cut the steel plate size: width 600-1320mm; thickness 0.6-1.4mm; B. Production capacity: cutting 15 time/minute; Max. Cutting speed 50-60m/minute; C. Total weight of the equipment: about 55 ton; D. Total power of the equipment: 48KW; E. Production level: cutting precision Length: tolerance 0.5mm; diagonal: tolerance 1mm

a. Coil cart: driven by 3 in 1 motor, hydraulic up and down;

b. Uncoil unite: no power turning, hydraulic driving, coil inner diameter Ф508-Ф610mm; Maximum load-bearing 15 tons；

c. 7 roller leveler machine: 7 rollers leveling, motor speed adjustable by change frequency;

d. Measurement facility: the length and precision is controlled by A.C. service motor made in Japan;

e. Transporter: rollers conveyer.

f. Cover Pressing Machine (160Ton press) : to forming the cover and bottom by 2-160 Ton punch press, the raw material is coiling steel plate, loading and unloading is Auto operating. Unit power is 15KW.

g. Double Locking Pressing Machine: to locking the small cover by 63Ton punch press.

h. Pre curling & spray sealing glue machine: Before seaming, the drum top and bottom need pre-curl, at same time must spray glue to ensure the seaming quality.

i. Cutter: 3×2000mm ；PLC control. producing PET plastic containers and bottles in all shapes.

Support various color LOGO customization fast production efficiency and automated support make production very simple

Specification

item	value
Condition	New
Machine Type	Welding Manipulator
Applicable Industries	Manufacturing Plant, Construction works , Energy & Mining, Other
After Warranty Service	Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location	Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Philippines, Brazil, Saudi Arabia, Indonesia, Pakistan, India, Russia, Spain, Thailand, Japan, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan
Showroom Location	Egypt, Turkey, United Kingdom, United States, France, Germany, Philippines, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Morocco, Kenya, Argentina, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Australia
Video outgoing-inspection	Provided
Machinery Test Report	Provided
Marketing Type	New Product 2020
Warranty of core components	1 Year
Core Components	PLC, Engine, Bearing, Gearbox, Pressure vessel, Gear
Place of Origin	China
	Shanghai
Brand Name	TRINTFAR
Certification	CE
Warranty	1 Year
	Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
Key Selling Points	Famous brand PLC
Weight (KG)	5000kg
Voltage	380v
Current	10kw
Rated Capacity	other
Rated Duty Cycle	other
Dimensions	438019272140
Usage	Automatic Welding
Speed	2~10pcs/min
Automatic Grade:	Automatic
Packaging Type:	Cartons, Barrel, Stand-up Pouch, Bags, case
Usage:	find the welding line
Packaging Material:	plastic, wood

FAQ

1. who are we?

We are based in Shanghai, China, start from 2018,sell to Domestic Market(65.00%),Southeast Asia(15.00%),Eastern Europe(10.00%),South Asia(10.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?

Always a pre-production sample before mass production;

Always final Inspection before shipment;

3.what can you buy from us?

Welding Machine

4. why should you buy from us not from other suppliers?

With a history of more than twenty years, our company is a mature enterprise integrating scientific research, development, manufacturing and sales and specialize in different resistance welders and automatic welding equipments

5. what services can we provide?

Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA,DDU,Express Delivery；

Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;

Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;

Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
