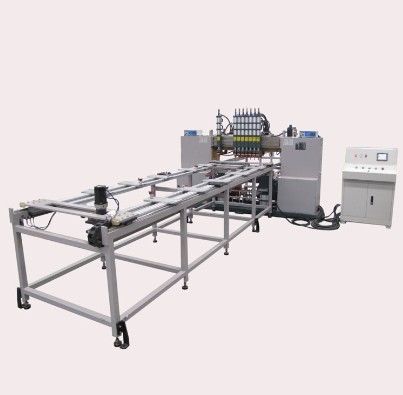

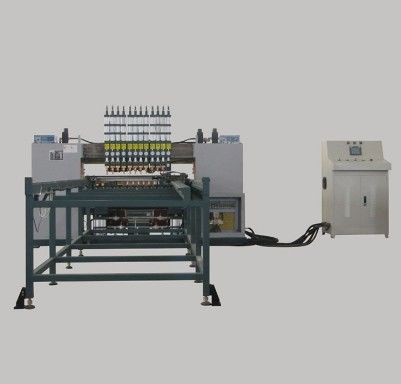

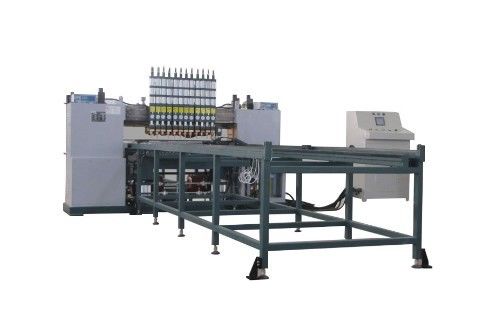

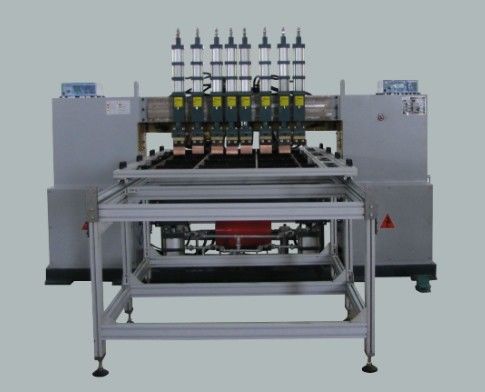

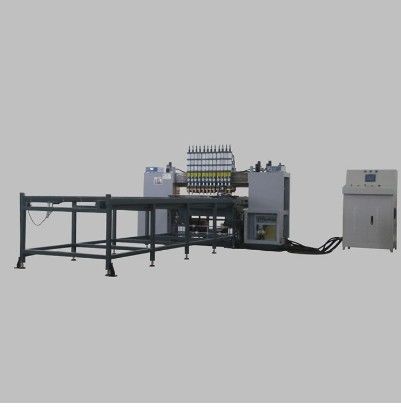

Automatic Multiple Head Iron Wire Mesh Spot Welding Machine

Certificación
China Shanghai Trintfar Intelligent Equipment Co., Ltd. certificaciones
China Shanghai Trintfar Intelligent Equipment Co., Ltd. certificaciones
Comentarios de cliente
También puedes contactar con mi dirección de correo electrónico o WhatsApp. Espero su respuesta. En el caso de las empresas de la Unión Europea, la Comisión ha adoptado una decisión sobre la aplicación de la presente Directiva. WhatsApp: +86 15216883036 Shanghai Trintfar equipo inteligente Co. Ltd

—— Queridos amigos

Estoy en línea para chatear ahora

Automatic Multiple Head Iron Wire Mesh Spot Welding Machine

Automatic Multiple Head Iron Wire Mesh Spot Welding Machine
Automatic Multiple Head Iron Wire Mesh Spot Welding Machine Automatic Multiple Head Iron Wire Mesh Spot Welding Machine Automatic Multiple Head Iron Wire Mesh Spot Welding Machine Automatic Multiple Head Iron Wire Mesh Spot Welding Machine Automatic Multiple Head Iron Wire Mesh Spot Welding Machine Automatic Multiple Head Iron Wire Mesh Spot Welding Machine

Ampliación de imagen :  Automatic Multiple Head Iron Wire Mesh Spot Welding Machine

Datos del producto:
Lugar de origen: PORCELANA
Nombre de la marca: Trintfar
Certificación: CE
Pago y Envío Términos:
Cantidad de orden mínima: 1
Precio: 10000~80000
Detalles de empaquetado: Corchetes de madera/estuches de madera
Tiempo de entrega: 90 ~ 120
Condiciones de pago: L/C, D/A, D/P, T/T

Automatic Multiple Head Iron Wire Mesh Spot Welding Machine

descripción
Maquinaria: 25 a 40 años/pcs Soldadura de la precisión: Cabezas de soldadura dobles para obtener resultados consistentes
Construcción robusta: Durable, maneja las demandas de producción pesadas Automatización avanzada: Completamente automático, reduciendo el trabajo y el tiempo
Compatibilidad versátil: Trabaja con máquinas de corte, grabado, forja y pulido de metales. Solicitud: Soldadura de malla de metal
Poder (W): Ajustable

Workflow
Automatic Multiple Head Iron Wire Mesh Spot Welding Machine 0
Work flow:U plate & Top plate → Front plate & U plate (longer side) → Front plate & U plate (shorter side) → Wave guide & magnetron support → Wave guide assembly & U plate → Back plate & U palte (longe side) → Back plate & U palte (shorter side) → Motor Support & U plate

Main equipments

U plate and top plate welding

Equipment model: 2xDR-20000J-2C

Automatic Multiple Head Iron Wire Mesh Spot Welding Machine 1Automatic Multiple Head Iron Wire Mesh Spot Welding Machine 2


U board and front board short side welding
Equipment model:2xDR-13000J-2C
Automatic Multiple Head Iron Wire Mesh Spot Welding Machine 3Automatic Multiple Head Iron Wire Mesh Spot Welding Machine 4

U board and front board long side welding
Equipment model:DR-20000J-1C
Automatic Multiple Head Iron Wire Mesh Spot Welding Machine 5Automatic Multiple Head Iron Wire Mesh Spot Welding Machine 6


Waveguide Box and Magnetron Welding
Equipment model:DR-30000J-1C
Automatic Multiple Head Iron Wire Mesh Spot Welding Machine 7Automatic Multiple Head Iron Wire Mesh Spot Welding Machine 8


Waveguide Assembly and U Plate Welding
Equipment model:DR-30000J-1C

Automatic Multiple Head Iron Wire Mesh Spot Welding Machine 9Automatic Multiple Head Iron Wire Mesh Spot Welding Machine 10

welding the long side of the back plate with the U plate
Equipment model:DR-20000J-1C

Automatic Multiple Head Iron Wire Mesh Spot Welding Machine 11Automatic Multiple Head Iron Wire Mesh Spot Welding Machine 12

short side of the back plate and U plate welding
Equipment model:DR-13000J-1C

Automatic Multiple Head Iron Wire Mesh Spot Welding Machine 13Automatic Multiple Head Iron Wire Mesh Spot Welding Machine 14

motor support welding
Equipment model: DR-13000J-1C
Automatic Multiple Head Iron Wire Mesh Spot Welding Machine 15Automatic Multiple Head Iron Wire Mesh Spot Welding Machine 16


Product Details

Oven Production Line Layout Diagram
Automatic Multiple Head Iron Wire Mesh Spot Welding Machine 17
Production Results

Automatic Multiple Head Iron Wire Mesh Spot Welding Machine 18


Basic Structure of DR-20000J Capacitor Energy Storage Spot Welding Machine

Components:
Frame, Pressurizing Mechanism, Water Cooling System, Welding Circuit, Capacitor Power Supply, Control System, Body, Welding Cylinder, Electrodes, Cooling Circuit, Monitoring Device, and Safety Mechanism.

  1. Frame:
    • C-frame structure, high-quality steel, and section steel.
    • Precision machining and heat treatment for rigidity and accuracy.
  2. Pressurizing Mechanism:
    • Vertical pressure type with self-lubricating bearings for better performance.
    • Minimizes electrode impact, preventing damage and wear.
  3. Pneumatic System:
    • Includes Japanese "SMC" solenoid valves, Taiwanese air processors, and oil-free cylinders.
    • Gas storage tank stabilizes pressure.
  4. Discharge Transformer & Welding Circuit:
    • Uses Wugang silicon steel sheets, and precision copper casting.
    • Soft copper tape and electrodes in series.
  5. Main Control System:
    • Mitsubishi PLC and HMI.
    • Manual, automatic, and charging modes.
    • Adjustable parameters via touch screen (voltage, pressure time).
  6. Welding Controller:
    • Fast charging/discharging via microprocessor.
    • Compatible with old and new capacitors, it extends capacitor life.
    • Protection modes for fault prevention.
    • Automatic adjustment for capacitor voltage and leakage current.
    • Fault detection for overcharge, discharge, and capacitor errors.
    • Stores up to 5 welding specs, count 9999 welds, real-time voltage detection (error ≤ 1%).
Technical Services
Adhere to customer-centricity and provide your company with comprehensive pre- sales and after-sales services such as installation, commissioning, training, and maintenance.

Pre-sales service: Before signing the contract, the company provides customers with various production process solutions and technical consulting services for equipment.

Installation and commissioning: According to the contract, our company will safely transport the equipment to the installation site designated by the user within the specified time, and send technical service engineers to install it on site. When the user has the basic installation and commissioning spare parts, the technical service engineer will install and debug the machine for the user to use, ensuring that the installation and commissioning site environment is neat, clean and orderly.

After-sales Training: The company offers free technical training (min. 5 days) at the buyer's site or the seller's training center. Key topics include:

-Control software usage
-Power on/off procedures
-Panel and software parameter settings
-Basic machine cleaning and maintenance
-Handling common hardware failures
-Operational precautions
Equipment maintenance

-One-year warranty after final acceptance;
-Customer service response time is within 24 hours;
-Paid repairs are provided after the warranty period.


Equipment Configuration List
No Station Name Model Quantity Unit
1 Motor bracket welding DR-13000J-1C 1 Set
2 U board and top board welding 2xDR-20000J-2C 1 Set
3 U board and front board short-side welding 2xDR-13000J-2C 1 Set
4 U board and the long side of the front board are welded DR-20000J-1C 1 Set
5 Waveguide box and magnetron welding DR-30000J-1C 1 Set
6 Waveguide assembly and U-board welding DR-30000J-1C 1 Set
7 The long side of the back plate is welded to the U plate DR-20000J-1C 1 Set
8 The short side of the back plate is welded to the U plate DR-13000J-1C 1 Set
